Energy storage batteries are at the heart of today’s renewable energy revolution, powering everything from electric vehicles to large-scale grid systems. From the smallest unit, the cell, to the complete battery pack, each layer of design plays a crucial part in delivering efficiency, safety, and performance.

To understand what makes an energy storage battery system truly effective and reliable, let’s explore the fundamental design choices and engineering principles that govern this process!

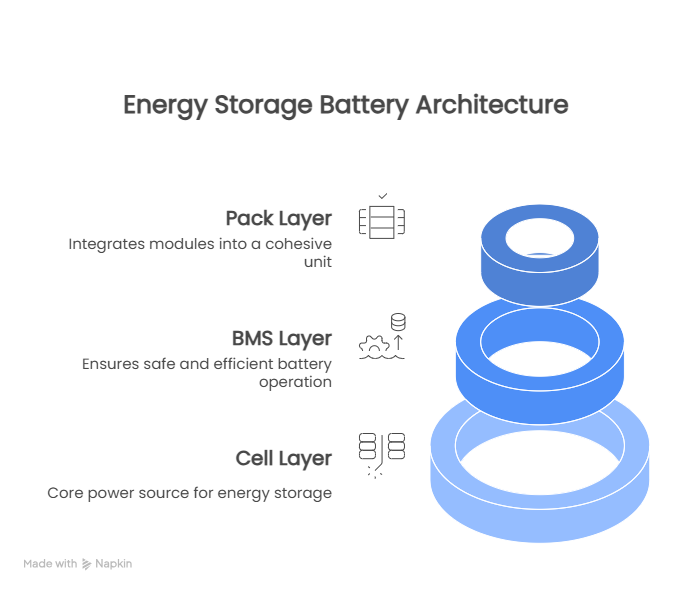

The Cell Layer: The Heart of the Energy Storage Battery System

The cell layer is the fundamental building block of any energy storage battery system. Each cell is a self-contained unit that stores energy chemically and releases it as electricity. Without these individual components, there would be no battery.

Primary Role: Cells are the core power source. They are responsible for the actual storage and release of energy that powers devices, from small gadgets to large-scale grids.

Common Cell Types:

·  Cylindrical Cells are robust and standardized, like the common 18650, used widely in many products.

· Pouch Cells are lightweight and flexible, making them suitable for devices where size and weight are critical, such as smartphones.

· Prismatic Cells are rigid and rectangular, offering efficient space utilization, which is why they are often found in electric vehicles and stationary storage.

Impact on Performance: A cell’s capacity (measured in amp-hours) determines how much energy it can hold. Its voltage dictates the electrical potential. Together, these characteristics directly influence the overall performance and energy output of the entire battery pack.

The Battery Management System (BMS) Layer: Ensuring Safe and Efficient Operation

The Battery Management System is the brain of the energy storage battery pack. Its main purpose is to ensure the battery operates safely and efficiently.

The BMS constantly monitors key metrics from each cell and module:

· Voltage and Temperature: It prevents overcharging, over-discharging, and overheating.

· State of Charge (SoC): It calculates how much energy remains.

· State of Health (SoH): It estimates the battery’s overall lifespan.

The BMS uses this data to control the battery’s behavior and protect it from damage. Key features include:

· Cell Balancing: It ensures all cells are charged evenly, which extends the battery’s life.

· Protection: It can disconnect the battery to prevent unsafe conditions like short circuits or extreme temperatures.

· Data Logging: It records performance data for diagnostics and health monitoring.

Without a reliable BMS, no modern energy storage battery system could maintain long-term safety or efficiency.

The Pack Layer: Bringing it All Together

The pack layer is the final assembly stage of an energy storage battery system, where multiple modules and the BMS are integrated into a single, cohesive unit.

· Structural Integrity and Protection: The pack’s enclosure provides physical protection against external forces, such as impacts, vibrations, and environmental factors like dust and moisture. It houses and protects all the internal components, including the cells, modules, and the BMS. This design is crucial for safety and durability.

· Thermal Management: The pack layer is responsible for controlling the temperature of the entire system. It often includes a dedicated thermal management system (TMS) with cooling or heating channels that regulate the battery’s temperature. Maintaining an optimal temperature range prevents cell degradation and helps maximize efficiency and lifespan.

· Scalability: Packs are designed to be scalable. By combining multiple packs, engineers can create systems with very high voltages and large energy capacities to meet the demands of different applications.

· Overall System Efficiency: A well-designed pack optimizes the system’s performance. It ensures efficient power transfer, minimizes energy loss, and works in conjunction with the BMS to manage the battery’s health and operational safety, ultimately determining the battery’s longevity and reliability.

Integrating Automotive-Grade Standards for Enhanced Reliability

While we’ve explored the individual layers of a battery, it’s the quality of their materials and assembly that truly separates a good battery from a great one. This is where automotive-grade standards come into play.

Initially developed for the demanding electric vehicle (EV) industry, these rigorous standards ensure components can withstand extreme conditions, from temperature fluctuations to constant vibration.

Applying these standards to energy storage battery systems significantly enhances their safety and durability.

HYXiPOWER has integrated these stringent standards into solar energy battery storage systems across three key layers:

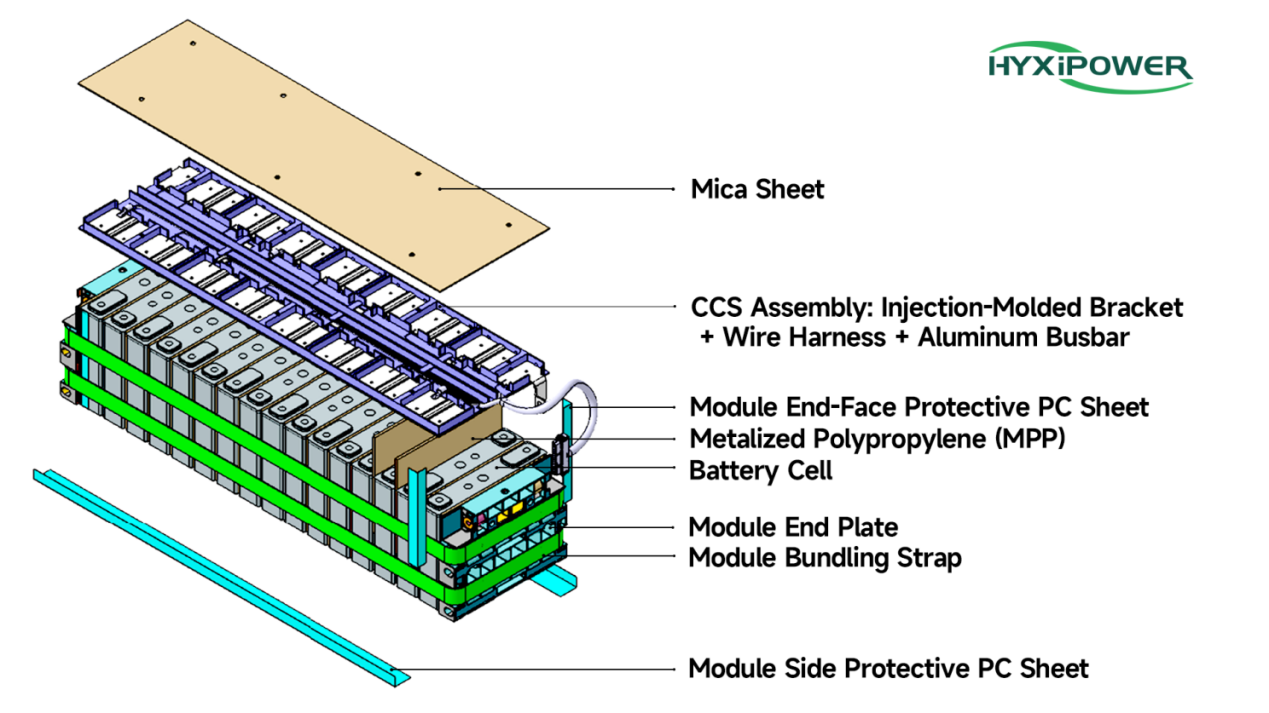

Cell Module: Our Cell Connecting System (CCS) uses an integrated molding process to minimize welding points. This results in a stronger structure with a 99% lower fracture risk. The module also features a unique MPP polypropylene and epoxy insulation to absorb cell expansion forces, ensuring long-term stability.

BMS: The self-developed, automotive-grade BMS uses premium components like NXP and TI chips for high-precision, real-time monitoring. This system provides superior cell balancing and thermal protection, which are crucial for preventing thermal runaway and extending battery life.

Pack: The pack features a suspended architecture that keeps cell modules from touching the casing, significantly reducing electric shock risk. A 3mm-thick stainless steel casing offers five times better corrosion resistance, and IP67-rated connectors ensure stable performance in harsh environments.

By adhering to these automotive-grade standards, HYXiPOWER delivers exceptional performance, safety, and durability to the energy storage industry.

Conclusion

From cells to packs, each layer of battery architecture determines how safe, reliable, and efficient an energy storage system can be. Yet the broader impact comes from how these technologies are applied at scale.

HYXiPOWER not only integrates automotive-grade standards into its products but also delivers complete energy solutions across more than 100 countries. With a growing patent portfolio, global certifications, and a commitment to sustainability, we are shaping the future of smart, resilient energy systems—empowering homes, businesses, and utilities to accelerate the transition toward a cleaner and more reliable power landscape. Don’t hesitate to contact us for advanced energy storage solutions！
